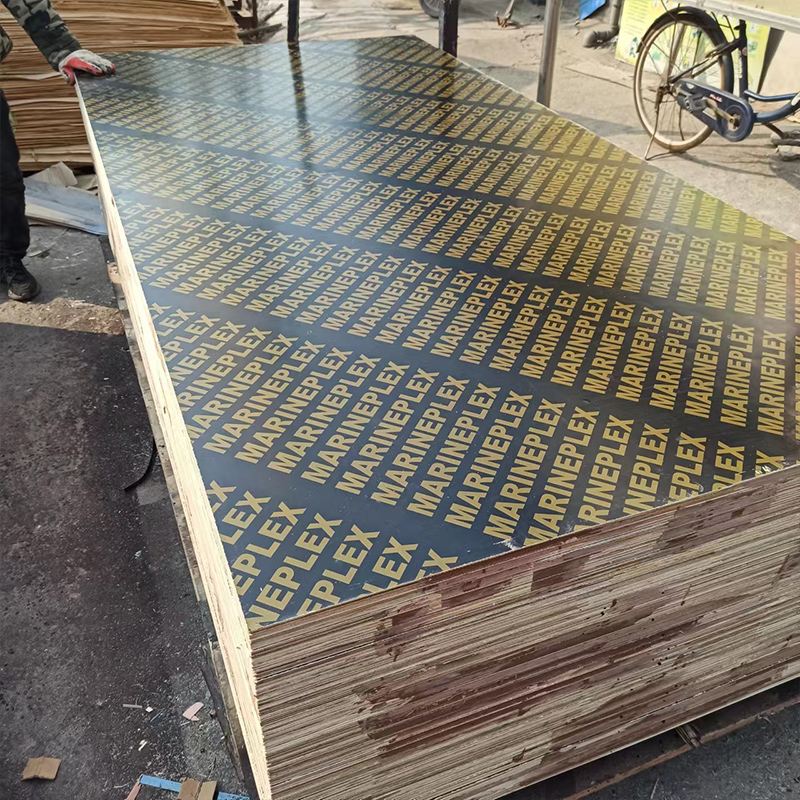

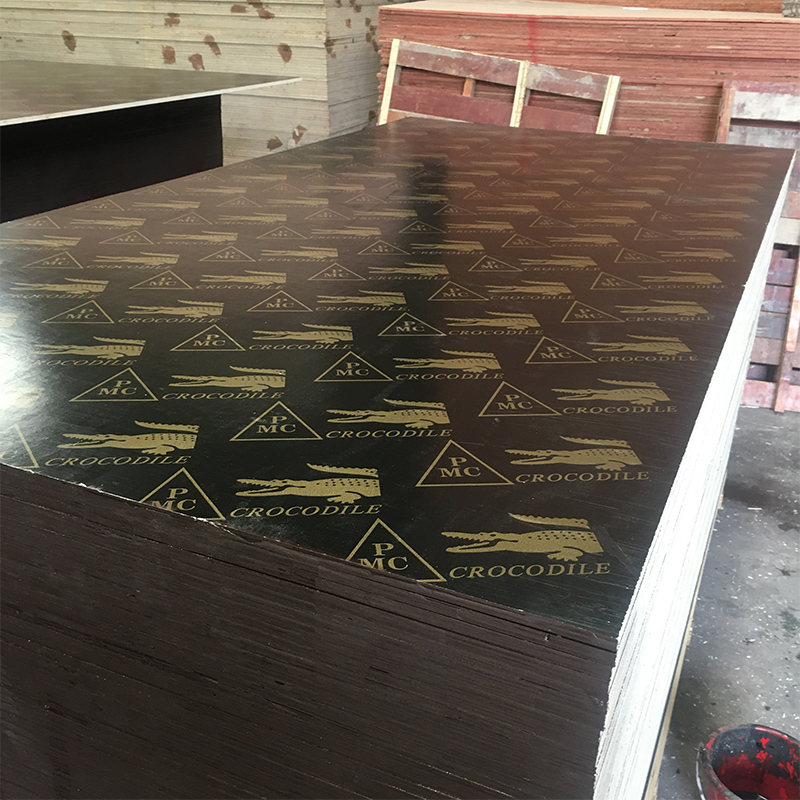

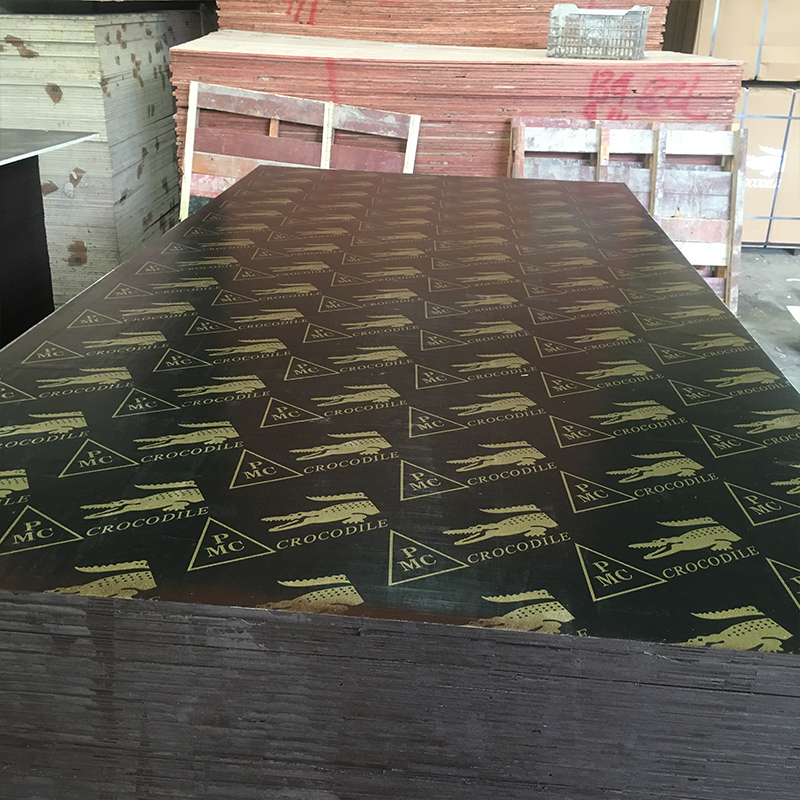

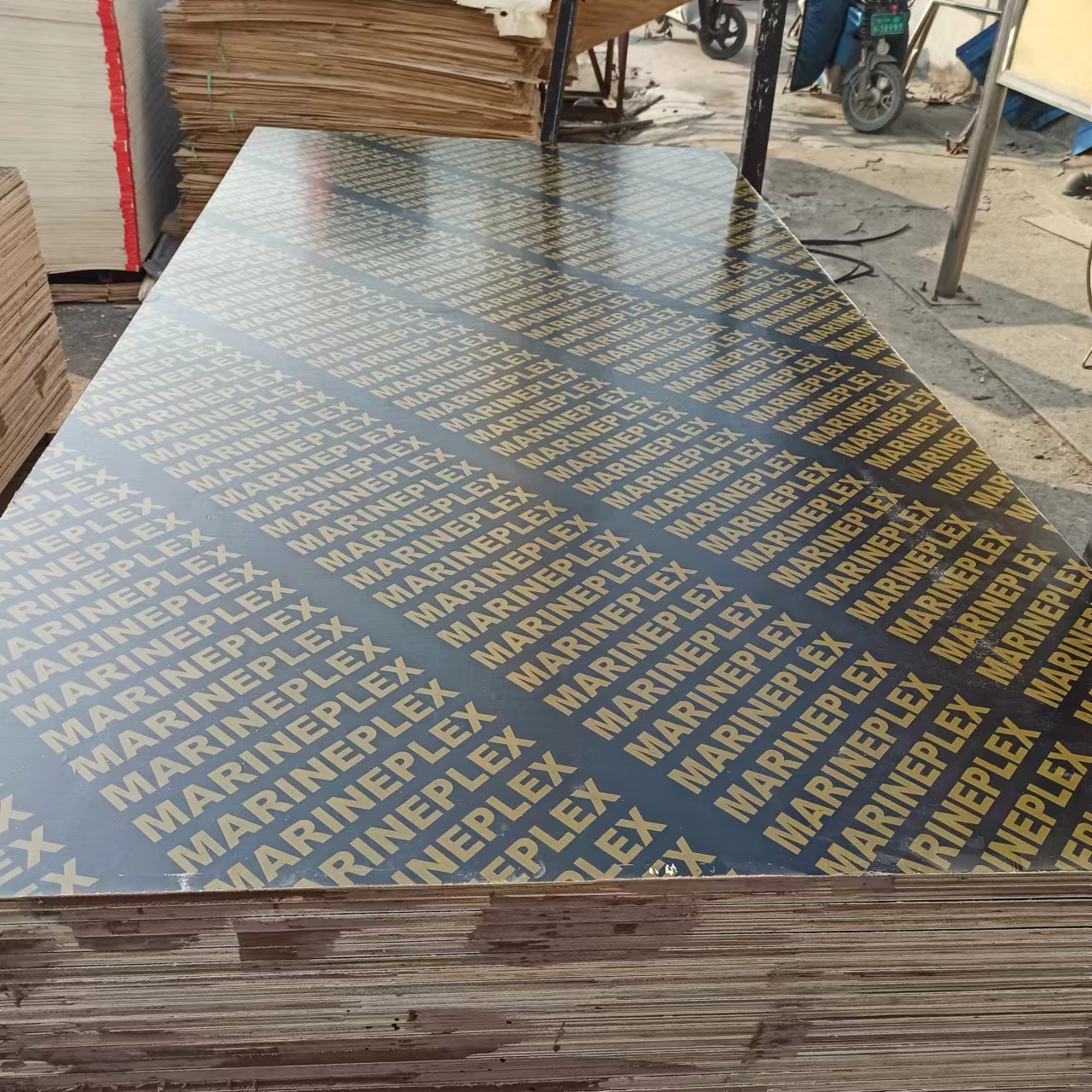

Finger Joint Core Film Faced Plywood

Finger Joint Core Film Faced Plywood is a specialized type of plywood designed for construction applications, particularly in concrete formwork. It consists of a finger-jointed core (made from small, interlocking wood pieces) laminated with a melamine or phenolic resin-coated film on both surfaces. This construction enhances durability, moisture resistance, and reusability compared to traditional plywood

Key Features:

Core Material: Typically made from poplar, hardwood, or combi-core (mixed wood species) with finger-jointed segments for stability .

Surface Film: Coated with black, brown, or colored melamine/phenolic film for waterproofing and smooth concrete finishes .

Glue Type: Uses WBP (Water Boil Proof), melamine, or phenolic resin for strong adhesion and weather resistance .

Common Sizes: 1220x2440mm, 1250x2500mm, and customizable thicknesses (9–25mm) .

Advantages of Finger Joint Core Film Faced Plywood

1.Cost-Effective & Eco-Friendly

Uses recycled or small wood pieces in the finger-jointed core, reducing waste and material costs .

Cheaper than solid wood or full-plywood core alternatives while maintaining structural integrity .

2.High Durability & Reusability

The melamine/phenolic film provides scratch, moisture, and chemical resistance, allowing 3–5 reuse cycles in concrete formwork .

Superior nail-holding and screw retention compared to bamboo or steel formwork .

3.Lightweight & Easy Handling

30% lighter than steel formwork, making it ideal for high-rise construction and bridges .

Easier to cut, drill, and assemble on-site .

4.Smooth Concrete Finish

The film-faced surface ensures a glossy, defect-free concrete finish, eliminating the need for plastering and saving 30% construction time .

5.Weather & Temperature Resistance

Performs well in winter conditions due to thermal insulation properties .

Resists corrosion and rust, unlike metal formwork .
